Metl flow indexer (MFI Tester)

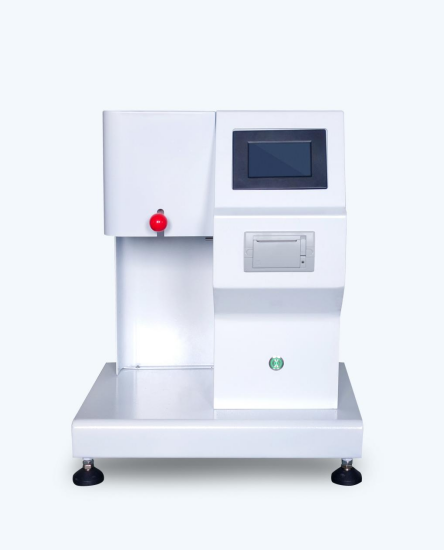

Melt Flow Indexer (Touch screen control)

ZH-MIV-CP

The melt flow indexer meets the standard requirements of GB / T3682-2000, and the main parameters are also full of ISO1133-97, ASTM1238, JIS. The requirements of other standards can be used for polyethylene, polypropylene, polystyrene, ABS, polyamide, fiber resin, acrylate, polyoxymethylene, fluoroplastic materials, polycarbonate, and other plastic materials are measured by the melt mass flow rate (MFR) or melt volume flow rate (MVR). It’s widely used in plastic production, plastic products, petrochemical and other industries as well as related colleges, scientific research units and commodity inspection departments.

1. Implementation of standards.

n GB/T3682-2000 "Determination of melt flow rate and melt volume flow rate of thermoplastics"

n ISO 1133:1997 "Determination of thermoplastic melt mass flow rate MFR and melt volume flow rate MVR"

n ASTM D1238 "Standard Test Method for Determination of Melt Flow Rate of Thermoplastics by Extrusion Plastometer"

2. Test method: MFR +MVR method

3. Display mode: Touch screen control

1) Temperature range: RT ~ 450 ℃

2) Temperature fluctuation: ± 0.2 ℃

3) Temperature uniformity: ± 1 ℃

4) Temperature display resolution: 0.1 ℃

5) Time display resolution: 0.1S

6) Barrel diameter: Φ2.095 ± 0.005mm, Φ1.05mm±0.005mm qty. 2 sets

7) Outlet length: 8.000 ± 0.025mm

8) Loading barrel diameter: Φ9.550 ± 0.025mm

9) Weight accuracy: ± 0.5%

10) Displacement measurement accuracy: 0.01mm

11) MVR timing accuracy: 0.01S

12) Displacement measurement encoder: Omron photoelectric rotary encoder

13) Test range of MFR: 0.1-150g / 10min

14) Test range of MFR: 50-5000cm³ / 10min (up to 5000 cm³ / 10min can be measured by means of plugging die)

15) Cutting method: manual and automatic cutting in one machine

16) Test load: 8 levels in total, 8 sets of weights

17) Power supply voltage: AC220V ± 10% 50HZ
