Falling ball impact tester, impact tester

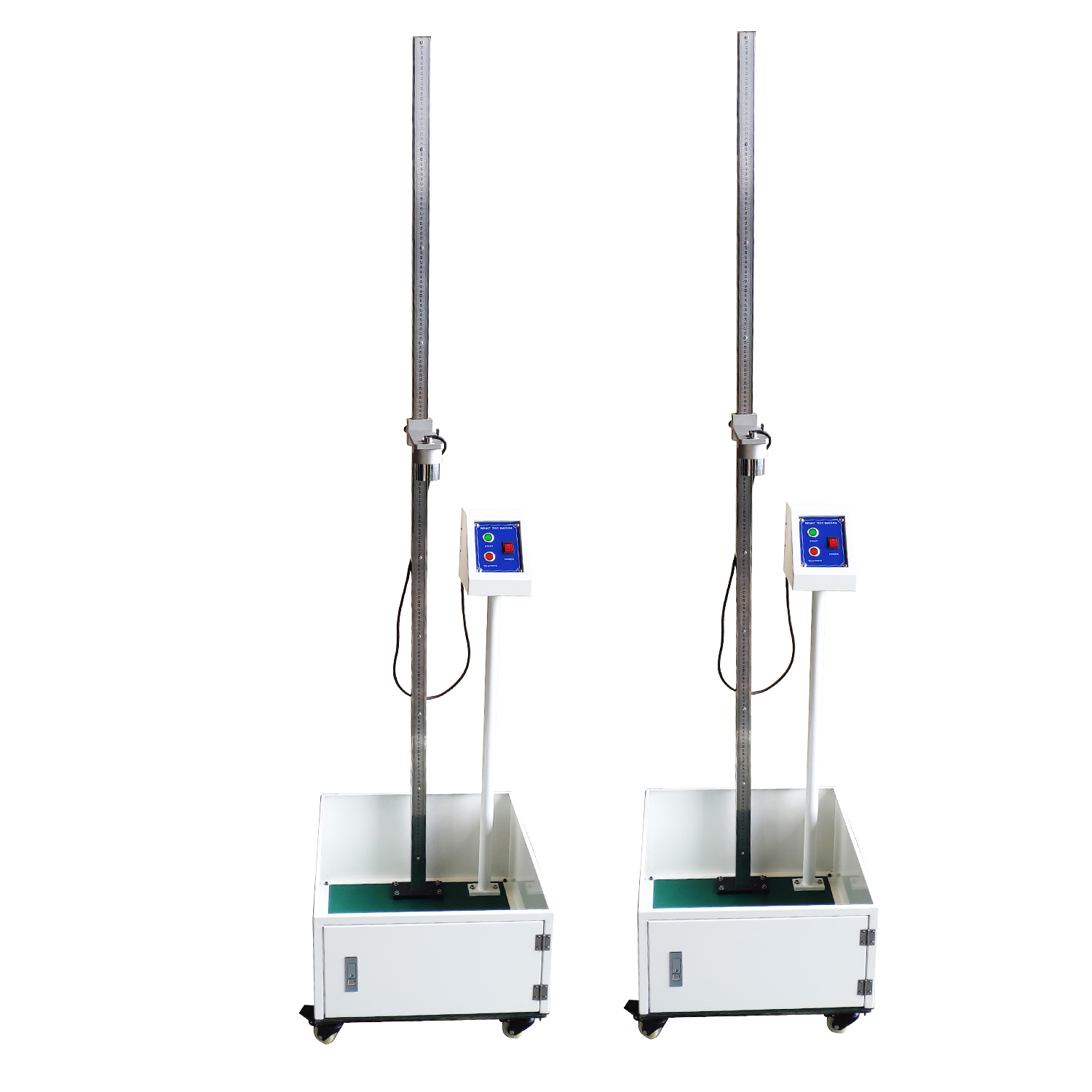

Falling Ball Impact Tester

ZH-FB-200

1. Profile

Falling ball impact testing machine adopts DC electromagnetic control method, the steel ball is placed under the electromagnetic sucker ball automatically suction, press the drop button, it release the steel ball instantaneously, the ball will do free fall test to impact the surface of specimen. Drop height can be adjusted up and down, and affixed with a height scale, we can learn the height of the drop.

The machine to the provisions of the weight of the ball, adjust at a certain height to make it free fall, depending on the extent of its damage to quality.

It is designed for the collision of finished products or components such as plastic, ceramic, acrylic, glass, electronics, electrical appliances, household appliances, plastics and communications during the installation process so as to assess whether the product structure is bad or not enough to test Certain provisions of the weight of steel balls, free fall at a certain height, hit the sample, components, and to observe the degree of damage to the product.

2. Technical parameters.

3. Precautions and maintenance

a) Make the center of ball align to the fixture center and fixed.

b) Pay attention to safety after the ball falls maybe out of the box.

c) Don’t use a sharp object to scratch the surface of the machine.

d) Wipe the table after each test is completed.

e) Wipe the ball clean and put back in the box.

f) Turn off the power after the test is completed.
