Flame test chamberHorizontal and vertical combustion chamber is suitable for measuring and evaluating the combustion characteristics of plastic materials. It is designed and made based on the America UL94standard the combustion characteristics' testing of plastic materials used for device and equipment parts. It tests the horizontal and straight combustion characteristics of plastic parts used for device and equipment, and equipped with gas flow meter to adjust size of flame. It use motor driving mode to make the operation easy and safe.
Telephone:+86 13794880254
Mail:carleen@sailham.com
|

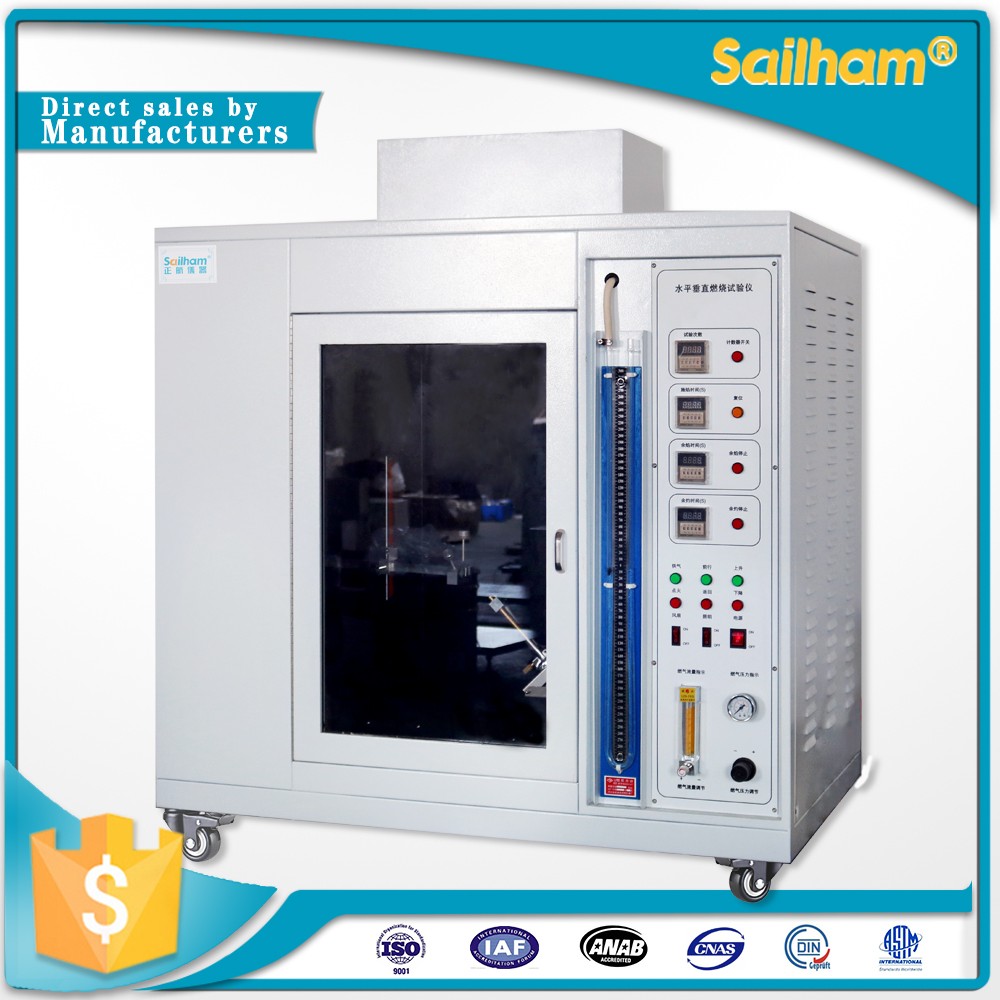

Horizontal
and vertical combustion chamber is suitable for measuring and
evaluating the combustion characteristics of plastic materials. It is
designed and made based on the America UL94standard the combustion
characteristics' testing of plastic materials used for device and
equipment parts. It tests the horizontal and straight combustion
characteristics of plastic parts used for device and equipment, and
equipped with gas flow meter to adjust size of flame. It use motor
driving mode to make the operation easy and safe.
Horizontal and
vertical combustion test chamber adopts PLC + colorized LCD touch screen
or LCD meter to control, with fine and easy understanding operation
interface and testing data printer, can print the testing conditions and
result, which is convenient to record the testing results. The table
size has several specifications like 0.5, 0.75, and 1 cubic meter. The
special size can be customer-made, you can choose touch screen control
or touch tone control.
| Control system | 7 inches colorized LCD touch screen+ PLC(programmable controller)+ micro printer, or data display instrument |
| Display system | 7 inches colorized LCD touch screen display, can set and display the time of fire, ignite, after flame, residual burn, and testing times. It can adjust the up and down of the jig and control the gas supply and fire. And also can display the print interface and operation conditions. |
| Cabinet capacity | ≥0.5 cubic meters, with glass watch door |
| Ignite time | 0~99 minutes and 99 seconds can be set |
| After flame time | 0~99 minutes and 99 seconds can be set |
| Residual burn time | 0~99 minutes and 99 seconds can be set |
| Timer | 0~99 minutes and 99 seconds can be adjusted, burning time can be set, and burning duration can be recorded. |
| Burning angle | 20°,45°,90°(equal to 0°) can be adjusted |
| Burner size parameter | Nozzle diameter Ø9.5±0.3mm, nozzle effective length is 100±10mm, with air adjust hole. |
| Flame height | It can be adjusted from 20mm to 175mm according to the standard requirement. |
| Product feature | It is equipped with lighting device, air extracting device, gas flow regulating valve, product feature gas gauge, gas pressure regulating valve, gas flow meter, form U gas manometer and sample. |
| Power | AC 220V, 50 Hz |
