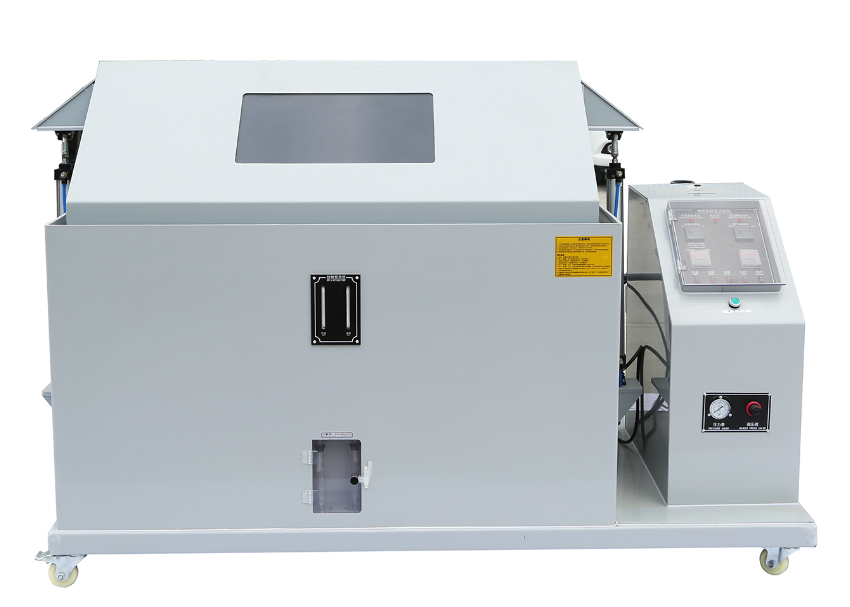

Salt Spray Test Chamber (600L)
ZH-SH-120 (A)
Salt Spray Test Chamber is
adapted to the surface treatment of various materials, including paint,
electroplating, organic and inorganic coating, metal products, it
carries out the anti-corrosive treatment to test the corrosion
resistance of the products.
Corresponding standard of the Salt Water Spray Test Chamber for CASS, NSS Test :
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
Technical parameters:
| Model | ZH-SH-60 | ZH-SH-90 | ZH-SH-120 | ZH-SH-160 | ZH-SH-200 | ||||
| Internal Dimension WxHxD (mm) | 600x450x400 | 900x600x500 | 1200x800x500 | 1600x800x500 | 2000x1000x500 | ||||
| External Dimension WxHxD (mm) | 1100x600x1200 | 1400x950x1200 | 1900x1300x1400 | 2300x1300x1400 | 2700x1500x1500 | ||||
| Lab Temperature | Saline test (NSS ACSS) 35±1 °C ;Corrosion Test (CASS)50±1 °C | ||||||||
| Pressure Bucket Temperature | Saline test method (NSS ACSS) 47±1 °C / Corrosion Test (CASS)63±1 °C | ||||||||
| Lab Capacity(L) | 110 | 270 | 500 | 800 | 1500 | ||||
| Saline Capacity(L) | 15 | 25 | 40 | 40 | 40 | ||||
| Saline Concentration | 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O | ||||||||
| Exter./Inter.Material | P.V.C & P.P | ||||||||
| Compressed Air Pressure(Kgf) | 1.0~6.0 | ||||||||
| Spray Volume | 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) | ||||||||
| Spray Form | Continuous Spraying or Programmable Spraying | ||||||||
| Power | AC220V , lines15A | ||||||||
| Weight(Kg) | 65 | 80 | 120 | 160 | 200 | ||||
| System | Salt Spray Vehicle | Air+acid(base)liquid | |||||||
| Heating | SUS#304 & #316stainless steel heater+taflon | ||||||||
| Controller | Hydrometer,salinomerer,fog collector,glassbar | ||||||||
| Safety Devices | Overheating prevention circult-breaker,dehydration and overheating prevention mechanism,breakdown indicator light | ||||||||
| Power Source(K.W.) | AC 1Ψ 220V 60/50Hz | ||||||||
| 1.1 | 1.5 | 3.5 | 5.5 | 7 | |||||
