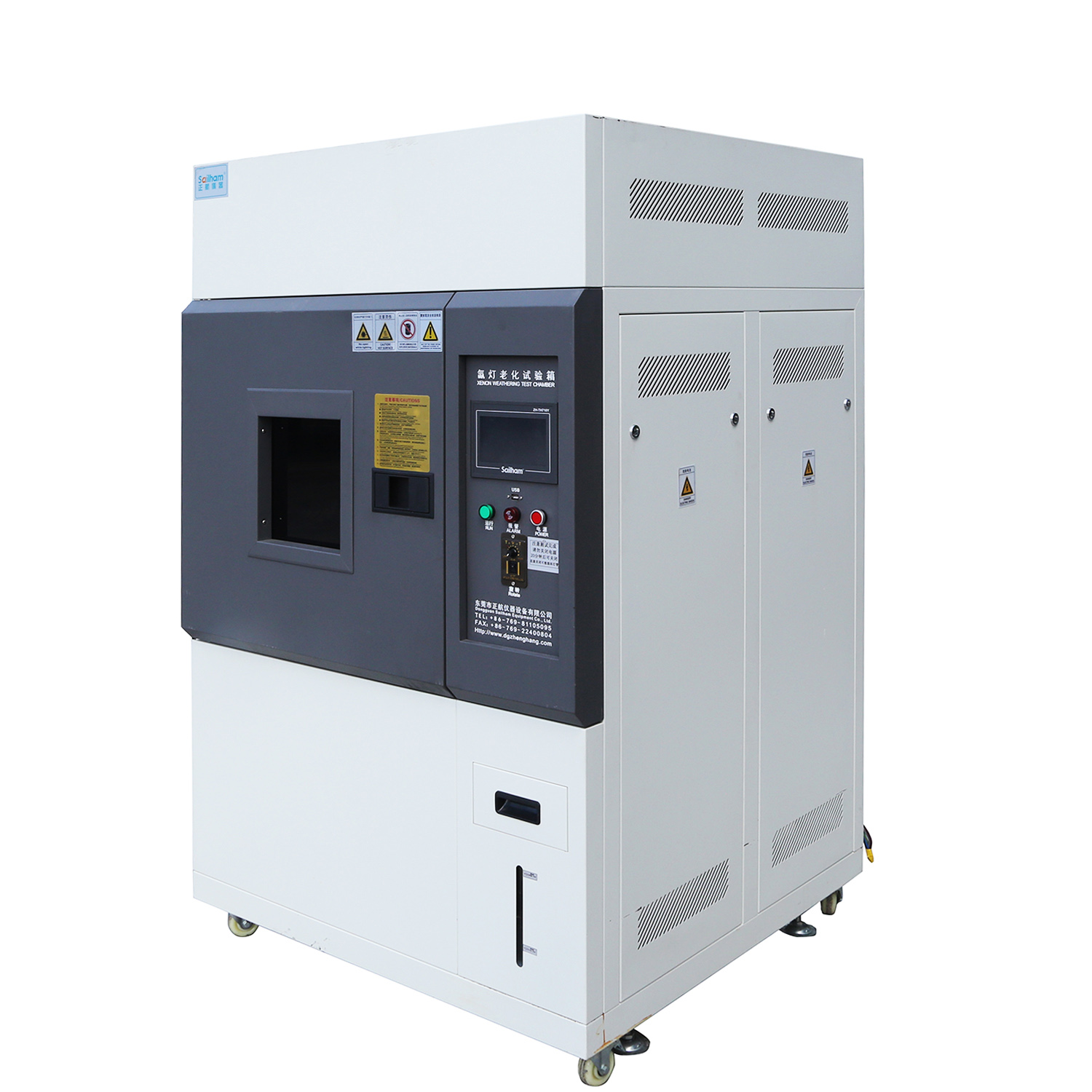

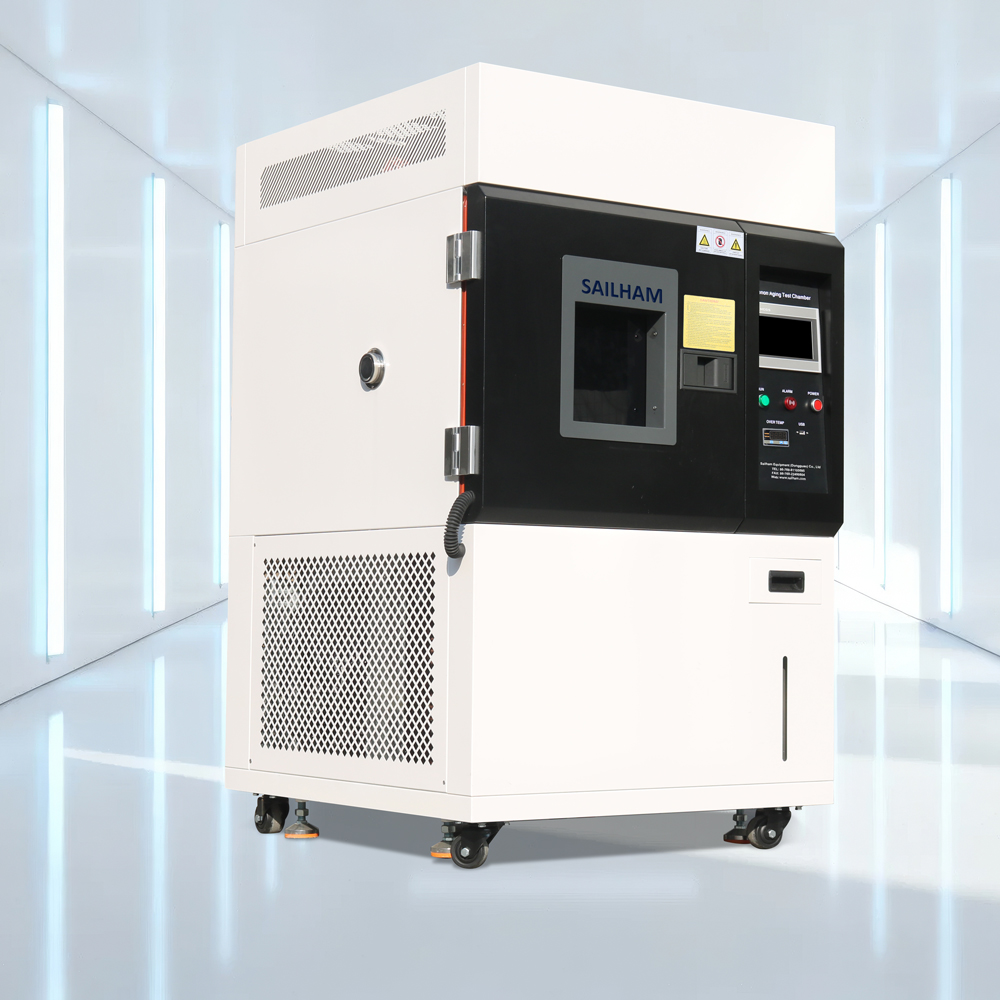

ZH-XLW-150 Xenon lamp aging test Chamber (different size can be customized)
Application
Xenon
lamp aging test Chamber is used to determine the color fastness, aging
resistance of textiles, plastics, rubber products or materials by
objecting to the simulated conditions of nature weather (daylight, rain,
temperature and humidity, etc.). The chamber simulates both light and
dark cycles and nature weather conditions by rack sprays and the
long-arc-xenon lamp equipped.
Features
1.
Light intensity set digitally, real-time monitoring, automatically
adjust to meet the different standards required for testing the
stability of light source (optional 420nm; 340nm or 300-400nm band
monitoring)
2. Blackboard Thermometer (BPT), the Standard Blackboard
Thermometer (BST), Irradiance detector and samples placed in the same
position, a true reflection of the sample under test conditions, the
data displayed as figures, charts, curves on the large color screen, no
need to stop for observation.
3. Detection and wireless transmission using light energy conversion technologies for energy, not the other home power supply.
4. 10.4 inch color display, a variety of test monitoring modes (animation, digital, graphics) operate easily and clearly.
5. Sample holders can be timed independently to achieve different tests simultaneity in the same machine
6. Imported Atlas Rated 6500W/4500W long-arc-xenon- lamp, it truly simulates the daylight spectrum.
7. Professional water circulation system, reduce operating costs.
8. Industrial temperature control (cooling) system offers quickly and smoothly control
9. Ultrasonic humidifier, professional dehumidification system to ensure accurate and stable humidity conditions.
10. With self-circulation system and air filtration system, significantly reducing the environmental requirements.
11. Cooled by circulating water chillers / water cooling two options to choose from.
12. Quality assurance of 1000 hours continuous running.
Product Specifications
| Model | ZH-XLW-150 |
| Interior sizes | W500×D500×H600mm (customized) |
| Exterior sizes | W1050×D1050×1750mm (or so) |
| Temp. range | 0ºC~80ºC |
| Controller | imported programmable 7inch touch screen |
| Material | inner and outer 304# stainless steel |
| Sample holder | Aluminum alloy frame base |
| Protection device | residual-current circuit breaker (RCCB) to control the warning for loop overload, thermal protection and water shortage protection. |
| Temp. deflection | ±2ºC (without lighting) |
| Humid. range | 30%~98%R.H |
| Humid. deflection | ±2.5%R.H(Humid.≥75%R.H); ±3%R.H(Humid.≤75%R.H)(without lighting) |
| Light source | imported full spectrum xenon arc lamp(average useful life 1600hrs) |
| Raining time | 1~9999min (adjustable) |
| Raining period | 1~240min, interval(cut)adjustable |
| lamp power | Test period for Temp., irradiation, condensation, spray can be adjustable |
| Lamp | 1.8KW |
| Wave length range | 290-800nm (other point 300~400nm, 300 or 400nm optional) |
| heating power (or so) | 4.0KW |
| humidification (or so) | 2.0KW |
| Light irradiance | 1200w/m2 |
| Distance between arc center and sample holder: | 350~380mm |
| Revolving speed of sample holder | ≥1r/min |
| Water spray period | a. spray time: 0~99h59min (Continuing or adjustable) b. stop time: 0~99h59min, (Continuing or adjustable) |
| Lighting time | Continuing programming control available |
| Black panel temp. | 85±3ºC |
| Cooling method | Mechanical wind cooling; Room temp. less than 26ºC is recommend, relative humid: ≤85%R.H; humid. and temp. tested after 2 hours under idle condition. |
