Programmable Salt Spray Test Chamber
Telephone:+86 13794880254
Mail:carleen@sailham.com
|

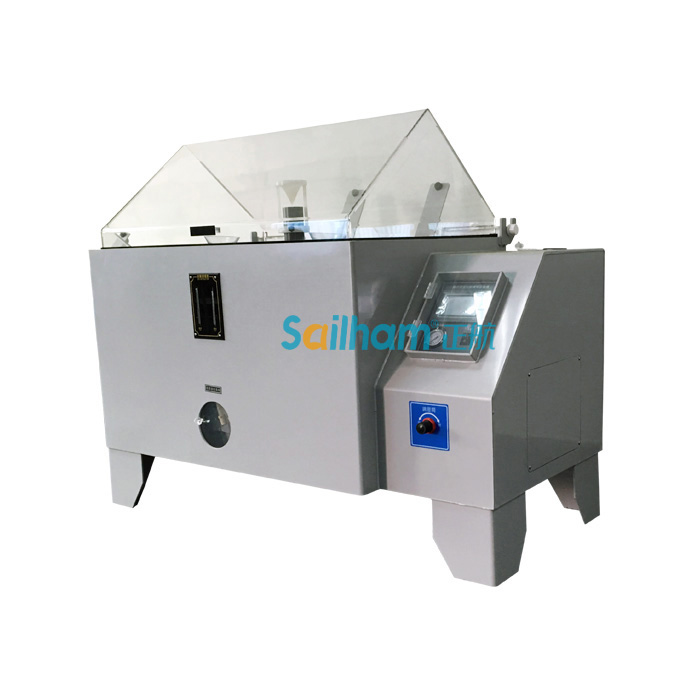

Programmable Salt Spray Test Chamber
1. Function
Salt spray test chamber is used for the quality inspection and corrosion resistance test of a variety of materials, including metal plating, metal, electronic components, chemical coatings, paint, automobiles, motorcycles, metal ware, screws, springs, magnetic materials, organic and inorganic coating, anodizing, anti-rust oil industry etc. after the surface treatment.
2. Technical parameters
Model (“A” refers to touch screen) | ZH-SH-60(A) | ZH-SH-90(A) | ZH-SH-120(A) | ZH-SH-160(A) | ZH-SH-200(A) |
Inner size: W*H*D(mm) | 600*400*450 | 900*500*600 | 1200*500*1000 | 1600*500*1000 | 2000*500*1000 |
External size: W*H*D(mm) appr. | 108*108*65 | 135*112*75 | 190*128*125 | 230*128*125 | 270*128*125 |
Weight (kgs) | 60 | 80 | 120 | 280 | 450 |
Temperature range | NSS, AASS 35°C±2°C, CASS 50°C±2°C | ||||
Saturated air barrel temperature | NSS, AASS 47°C±2°C, CASS 63°C±2°C | ||||
Multiple safety protection devices | Water shortage, over temperature, phase protection | ||||
Temperature Fluctuation | ±0.5℃ | ||||
Temp. uniformity | ±2.0℃ | ||||
Body materials | PVC material (for NSS, AASS test), PP material or thickening PVC (for CASS test) | ||||
Power supply source | AC220V 50/60Hz, 1 phase | AC380V 50/60Hz, 3 phase | |||
Conforms to the international standards.
GB/T 2423.17-1993 salt spray test
GB/T 2423.18-2000 salt spray test
GB/T 10125-1997 salt spray test
ASTM.B117-18 Standard Practice for Operating Salt Spray (Fog) Apparatus
ISO 9227 Corrosion tests in artificial atmospheres - Salt spray tester
IEC68-2-11 salt spray test; IEC68-2-52 1996 salt spray test
GB.10587-89 salt spray test
CNS.4158 salt spray test
CNS.4159 CASS Accelerated acetic acid copper salt spray test
GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
