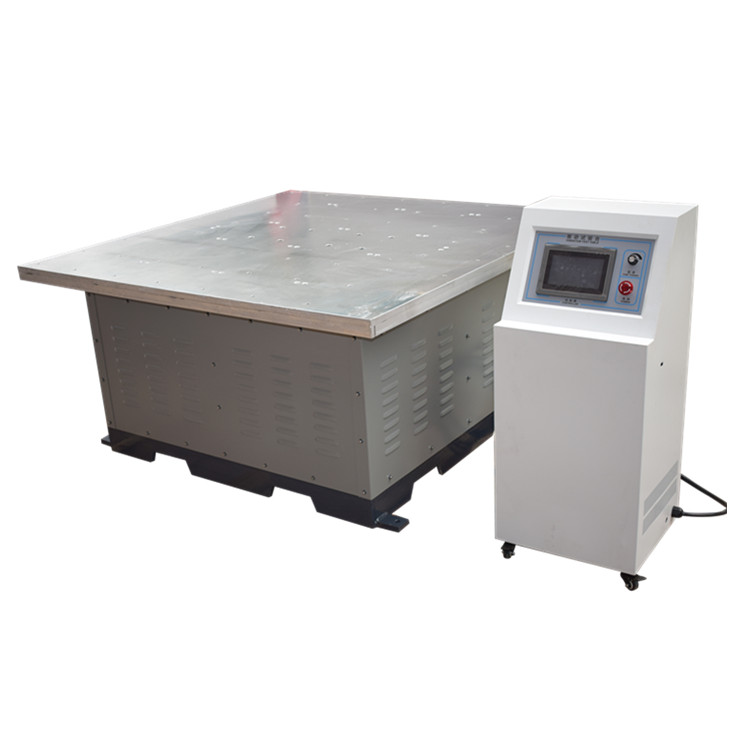

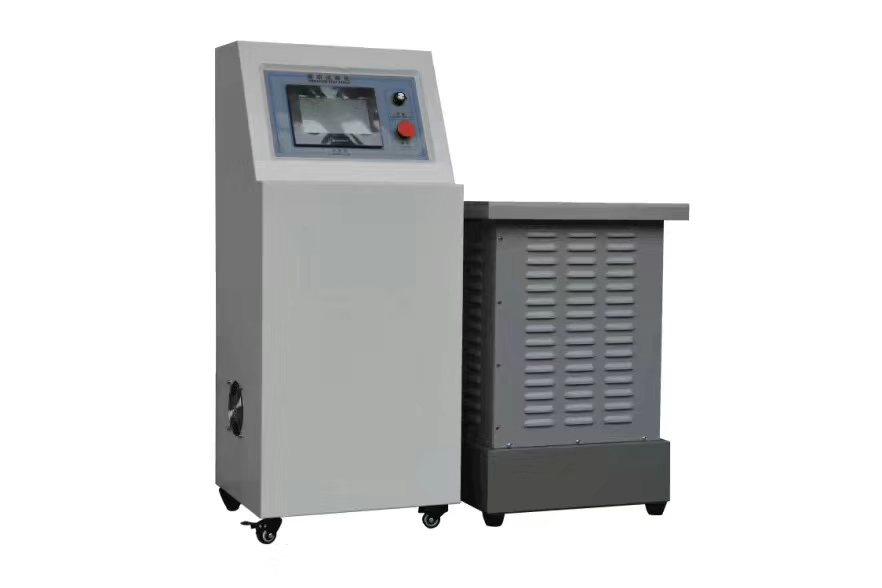

Electromagnetic Vibration Table

Features:

Touch screen controller, easy to operate, to solve the shortcomings of digital operation which is inconvenient;

Four-point synchronous excitation, the table vibration evenly.

Real-time synchronous display of control parameters, without human intervention.

Machine base with shock absorber, easy installation, smooth operation, no need to install the anchor screws

Embedded amplitude prediction program and easy to adjust the amplitude

Steppless adjustment amplitude, fixed frequency and frequency sweep operation can meet different requirements

Increase the anti-jamming circuit, to solve the strong electromagnetic field on the control circuit interference;

Curve display function, can view the frequency waveform changes at any time




Telephone:+86 13794880254 Mail:carleen@sailham.com

Detail

2.jpg3-axis 1.jpg

Features:

Touch screen controller, easy to operate, to solve the shortcomings of digital operation which is inconvenient;

Four-point synchronous excitation, the table vibration evenly.

Real-time synchronous display of control parameters, without human intervention.

Machine base with shock absorber, easy installation, smooth operation, no need to install the anchor screws

Embedded amplitude prediction program and easy to adjust the amplitude

Steppless adjustment amplitude, fixed frequency and frequency sweep operation can meet different requirements

Increase the anti-jamming circuit, to solve the strong electromagnetic field on the control circuit interference;

Curve display function, can view the frequency waveform changes at any time


Parameters:

Model

ZH-500AG

ZH-500BG

ZH-500CG

ZH-500EC

Vibration direction

One axis - Y

Two axis - Y + X

Three axis - Y + X + Z

Table size (mm)

500*500 (750*750 / 1000*1000 optional, other size customization is available)

Max. Test load

100kgs

Frequency

2-600HZ (2000Hz and other frequency customization is available)

 2-3000HZ

Frequency accuracy

0.01 Hz

Amplitude

0 ~ 5mm (or higher)

Maximum acceleration

20G

Vibration waveform

Sine wave

Function

Fixed, Random Frequency, Sweep Frequency, Log, Doubling Frequency, acceleration curve available,

Controller

7’’ programmable touch screen controller (English only language)

Power supply

220V, 50Hz, AC, Single phase, 2.0KW


FAQ
Why choose us?

1. Consider different countries plugs, manually change the-voltage from 110V to 220V, as insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your equipment for free, even it's not from our factory. What can we do for you, just don't hesitant to contact us.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
