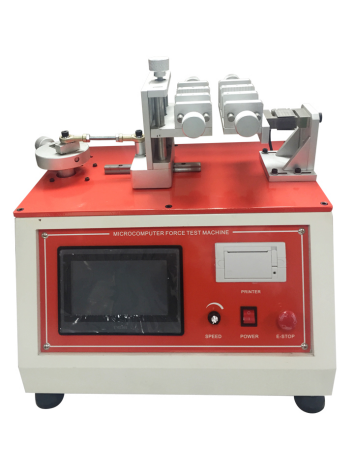

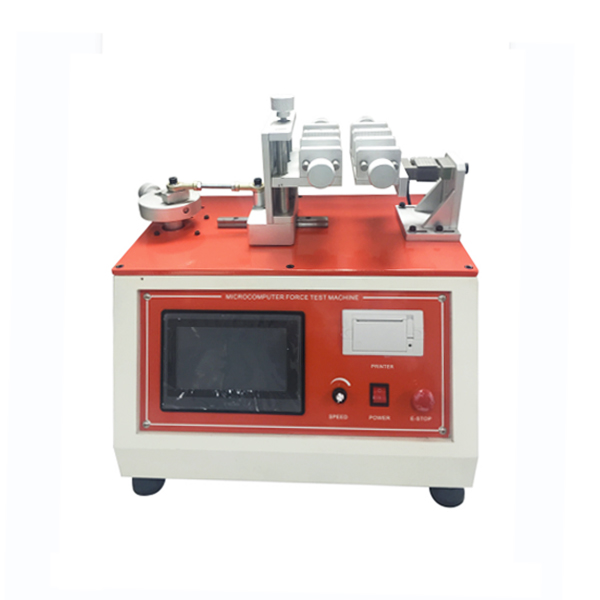

Plug Insertion Force Tester

Plug Insertion Force Tester

ZH-CB-W01

1. Application.

This machine is suitable for a variety of connector plug-in tests. It adopts embedded microcomputer measurement and control technology. It can display the insertion force, pull-out force and real-time force value at the same time, and has the number of times setting, the speed stroke is adjustable, and the speed value is displayed, Automatic reset, unit conversion, etc. The power design of the rotating eccentric wheel makes the test speed and the test stroke not related, long and short stroke connectors, the test is also fast. Can be described as the most cost-effective plug life testing machine in the market.

2. Test Parameters

1) It has the function of automatic stop and alarm when overload is set

2) With automatic saving function, the maximum can automatically save 100,000 points, and calculate the average value

3) Use the list method to list the saved test data.

4) Users with an administrator password can modify the power-on password.

5) Use software to calibrate the load value.

6) Range of times: 0~999999

7) Transmission mode: rotating eccentric wheel

8) Display mode: touch screen

9) Insertion force range: 0~50kg

10) The minimum plug-in force resolution: 0.01kg

11) Stroke range t: 0~60MM

12) Test speed: 10~60 (digital display)

13) Two unit conversion: N, KG, IB

14) Machine size: 550(D)*470(W)*450(H)mm

15) Working voltage: single-phase 220V

16) Main circuit fuse: 2A

17)  A built-in micro printer to print related test data
