Carton compression test machine

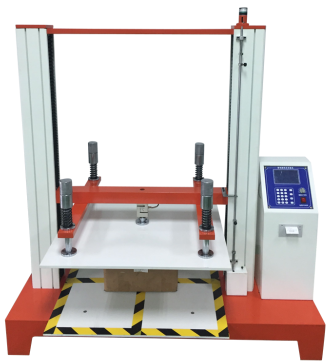

Carton Compression Test Machine

ZH-CT-800

Carton compression testing machine is used for compressive strength performance test of corrugated boxes, packaging containers and transport packages; the machine has statistical data processing and printing functions with the standard contains the parameters of the test, display and memory, can be directly get the statistical results of the data, which is easy to operate.

1. Compression test

It’s used to determine the ultimate compressive strength of the sample, the machine automatically records the pressure peak and the compression deformation of sample;

2. Value setting test

It can be set according to the pressure or deformation to detect the overall performance of the box and provide the necessary test data for the design and selection of the box;

3. Stacking strength test

To continue to impose a certain pressure value to the sample within a specified period of time, which is used to determine the pressure of durability of the sample in the simulated packaging storage, according to the relevant standards, such stacking test can be under 12 hours, 24 hours and other conditions.

Note: Depending on the size of the corrugated boxes, packaging containers or transport packages, users can choose this testing machine that combined into different sizes and different pressure range to meet more needs.

Standards compliant

ISO2872 "Compression test for packaging transport parts”

ISO2874 "Stacking test for packaging and shipping parts using compression testing machine"

GB4857.4 "Basic pressure test method for transport package"

Technical parameter:

A. Drive mode: screw drive

B. Capacity: 1000KG / 2000 KG (or can be customized)

C. Resolution: 1/100,000

D. Accuracy: ± 0.5 (± 1%)

E. Power units: kgf, KN, N, tonf(sl), gf, tonf (long), tonf (short), lbf, ozf

F. Control system: AC variable frequency gear motor

G. Transmission: T-type screw + chain drive

H. Power take point: specify the corresponding displacement of the power point, with the carton stacking test function

I. Display: LCD large touch-screen controller (7 inch)

J. Stroke: 50-1200mm (can be customized)

K. Test speed: 10-1200mm / min

L. Test space: 800 * 800 * 800mm (other test space is available)

M. Upper plate thickness: 15mm; lower plate thickness: 10mm; single plate parallelism: 0.1mm.
