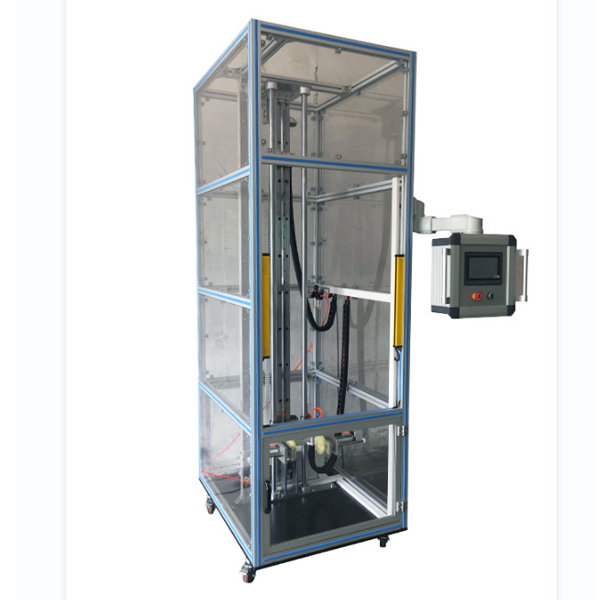

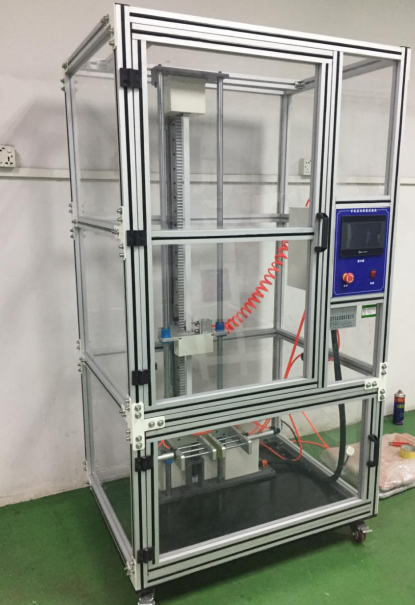

Mobile phone Directional Drop Tester

Directional Drop Tester

ZH-DX-218

1. Application:

The directional drop tester is suitable for the durability of the outer casing and the performance test of the internal structure against heavy (heavy) fall. It is suitable for mobile phones, mobile phone lithium batteries, walkie-talkies, electronic dictionaries, building intercom phones, MP3 and other small electronic products with universal adjustment device can complete the drop from 0 degrees, 45 degrees, 90 degrees of diamonds, corners, and faces.

2. Features:

A. The lifting mechanism adopts linear slide guide, and the synchronous belt drives the lifting and lowering to realize test height adjustable.

B. Each time the drop is completed, it will automatically return to the adsorption position;

C. Three vacuum chucks are freely electronically controlled (independent)

D. Realize multi-angle testing of mobile phones;The drop height and the adsorption height can be set, and the number of drops is displayed/cleared;

E. Touch screen + PLC control, can display data such as drop height directly.

F. Safety door protection function (full cover type);

G. Vacuum suction cup adsorption, with universal adjustment device can complete 0°, 45°, 90° angle drop;

H. The sample is released at a height of 300mm, 400mm or other height adjusted, and the product drop angle is close to the test set angle;

3. Technical parameters:

A. Operation mode: touch screen control.

B. Drive mode: motor drive, face, edge, corner all-round drop.

C. Drop height range: 300-1500mm adjustable

D. Drop mode: Orientation drop + Free drop can be switched.

E. Drop contact surface: marble board, cement board, steel plate, wood board.

F. Clamping method: cylinder to clamp; clamping range: 30*30cm customized

G. Max. capacity of sample: 2kgs

H. Drop method: repeated drops

I. Air pressure: 0.2 ~ 0.6Mpa

J. Dimensions: L780*W900*H2450mm

K. Machine weight: 150kg

L. Power: 1000W

M. Power: AC 220V 50Hz
