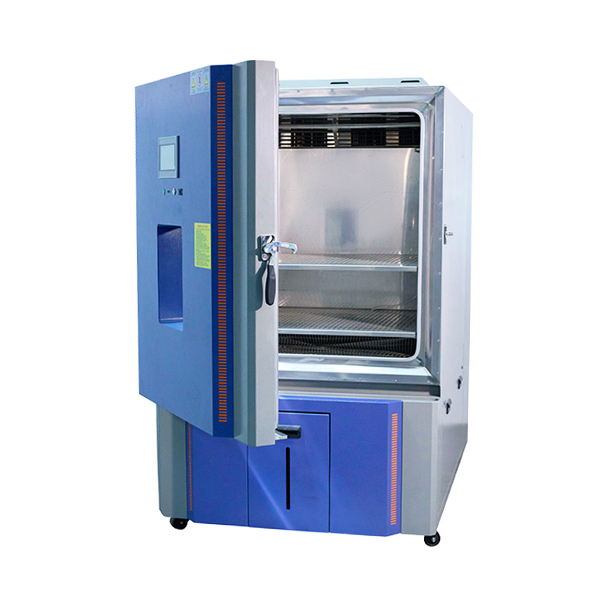

Rapid Thermal Cycling Test Chamber
1. Profile.
It’s also know as Thermal Cycling Test Chamber, with fast changing rate above 2C/min within a certain range. It simulates the products in the chamber where the climate condition of different temperature and humidity, such as high-low operation and storage, temperature cycling, high-low temperature etc. to check its adaptability and changing performance. It’s required to conform to international regulation (IEC, JIS, GB, MIL…) to reach the consistency (including test schedule, condition, method) under the international standard. Compared to the Temperature Humidity Test Chamber, this device is without humidity control function.
2. Main technical parameters.
Model | ZH-HL-80F5 | ZH-HL-150F/5~15 | ZH-HL-225F5~20 | ZH-HL-408F5~20 | ZH-HL-800F5~20 | ZH-HL-1000F5~20 |
Inner size: W*H*D(cm) | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 100*100*80 | 100*100*100 |
External size: W*H*D (cm) case type | 105*165*98 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 |
Temperature range | (Lowest temp.: A: RT+5℃; B: 0℃; C: -20℃; D: -40℃; E: -60℃; F: -70℃) (Highest temp.: +150℃) | |||||
Temp analytic accuracy; | 0.1℃ ; | |||||
Temp. uniformity | ±2.0℃ | |||||
Temp. Fluctuation | ±0.5℃ | |||||
Heating/cooling rate | 2℃ per min / 5℃ per min / 10℃ per min / 15℃ per min / 20℃ per min optional before quotation Non-linear models are F series, Linear models are X series | |||||
Insulation materials | Resistant to high temp, high density, formate chlorine, ethyl acetum foam insulation materials | |||||
Material | Inner chamber: 304#SUS; External shell material: 304#SUS or quality painted shell | |||||
Refrigeration system | Air cooed/single stage compressor(-40°C) , double stage compressor(-50°C~-70°C) | |||||
Refrigerant | USA DuPont R404a (R449a optional), R23 | |||||
Parts | 3-layer viewing window x 1; φ50mm (100mm optional) access port x 1, sample shelves x 2; | |||||
Wet and dry bulb gauze; castor x 4; Foot Cup x 4; Operation manual x 1; Warranty card x 1. | ||||||
Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, over-temperature protection switch, fuse, failure warning system | |||||
Compressor | Original France “Tecumseh” brand | |||||
Controller | Independent R&D software, 7’’ touch screen programmable controller, Taiwan hardware | |||||
Extra function | RJ45 communication protocol, Ethernet LAN remote control via PC and mobile phone | |||||
Power | AC220V 50/60Hz 1 or AC380V 50/60Hz 3 | |||||
Other | For other sizes (including walk-in series, mini desk type) and other requirements can be customized | |||||
