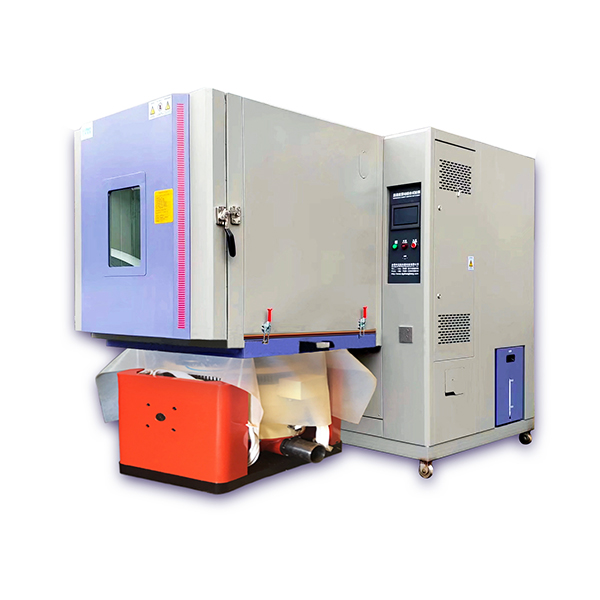

ZH-ZTH-800D Temperature and Humidity Vibration Comprehensive Test Machine (800L)
Product Specifications:
Model | ZH-HS-800A | ZH-HS-800B | ZH-HS-800C | ZH-HS-800D | ZH-HS-800E | ZH-HS-800F | |||
Inner size | W1000*H800*D1000mm (800L) | ||||||||
External size | W1550*H1950*D1550mm (Narrow type) | ||||||||
Temp. range | RT~150℃ | 0℃~150℃ | -20℃~150℃ | -40℃~150℃ | -60℃~150℃ | -70℃~150℃ | |||
Humid. range | 20%~98%R.H | ||||||||
Inner material | SUS304 stainless steel | ||||||||
External material | SUS304 stainless steel or electrostatic spray paint | ||||||||
Refrigeration System | Original France“Tecumseh”brand single-stage compressor | Original France“Tecumseh”brand double-stage compressor | |||||||
Refrigerant | R404a (DuPont / USA) | R404a and R23 (DuPont) | |||||||
Cooling method | Air-cooled | ||||||||
Controller | Independently developed 7-inch full-color touch screen controller | ||||||||
Heating rate | 2.0℃~4.0℃/min (non-linear) | ||||||||
Cooling rate | 0.7℃~1.0℃/min (non-linear) | ||||||||
Accessories | 50mm wiring hole * 1 set, humidified gauze * 1 set, 4GB U disk (with operating video) * 1, manual warranty card * 1, rack * 2 | ||||||||
Weight (kg) | 450 | 480 | 500 | 500 | 530 | 530 | |||
Voltage | 220V or 380V | ||||||||
Power (kw) | 5.0 | 6.5 | 6.8 | 7.2 | 7.8 | 8.0 | |||
Current A) | 22 | 25 | 28 | 30 | 30 | 32 | |||
Other volume can also be customized.
1. Main technical parameters of the system
1) Maximum Thrust: 3000N
2) Frequency range: (5 ~ 3000) Hz
3) Maximum load: 100 kg
4) Maximum vibration amplitude:
① Maximum displacement (P-P): 25mm
② Maximum speed: 1.25m / s
③ Maximum acceleration (no load): 6000m / s2
5) Table size: Φ165mm
6) Vibration direction: vertical
7) Cooling method: forced air cooling
2. Working environment and installation requirements
1) Working environment
· Power: 380V ± 10% Three-phase four-wire 50Hz 7kVA
· Grounding: Resistance ≤4Ω, it is recommended that the system or laboratory be grounded separately
· Ambient temperature: 0 ~ 35 ℃
· Ambient humidity: ≤85% RH
· Foundation load: ≥ 2t / M2
