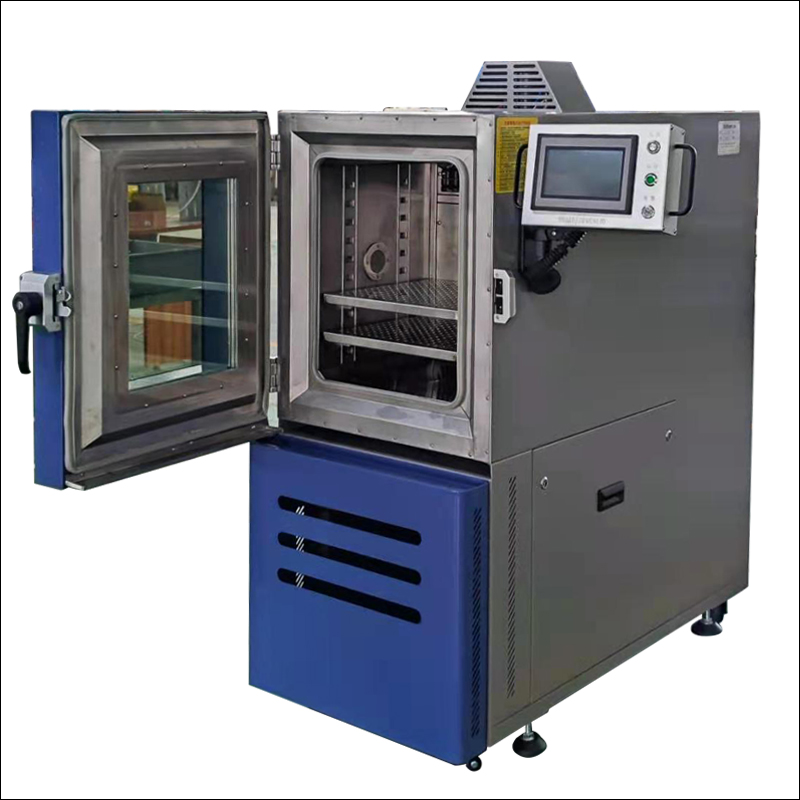

Big-window Climate Test Chamber

1.LCD 7'' touch screen
2.Inner material:SUS#304
3.Tato controller, with Independent R &D software
4.Teme. Range: -70~150/180C adjustable
Accessories;
Inner door with operation hole (optional)
50mm or100mm Entrance hole for test wire, Dia. 50mm or 100mm
Sample Shelves, two layers
R232 or R485 communication Interface

Telephone:+86 13794880254 Mail:carleen@sailham.com

[prev:Temperature and humidity vibration comprehensive testing machine] [next:Thermal shock test chamber ]

Detail

Big-window Climate Test Chamber

Product Specifications:

Model	ZH-HS-150A	ZH-HS-150B		ZH-HS-150C		ZH-HS-150D		ZH-HS-150E	ZH-HS-150F
Inner size	W500 x D500 x H600mm (150L)
External size	W700 x D1300 x H1680mm (Narrow type)
Temp. range	RT~150℃	0℃~150℃		-20℃~150℃		-40℃~150℃		-60℃~150℃	-70℃~150℃
Humid. range	20%~98%R.H
Inner material	SUS304 stainless steel
External material	SUS304 stainless steel or electrostatic spray paint
Refrigeration System	Original France“Tecumseh”brand single-stage compressor						Original France“Tecumseh”brand double-stage compressor
Refrigerant	R404a (DuPont / USA)						R404a and R23 (DuPont)
Cooling method	Air-cooled
Controller	Independently developed 7-inch full-color touch screen controller
Heating rate	2.0℃~4.0℃/min (non-linear)
Cooling rate	0.7℃~1.0℃/min (non-linear)
Accessories	50mm wiring hole * 1 set, humidified gauze * 1 set, 4GB U disk (with operating video) * 1, manual warranty card * 1, rack * 2
Weight (kg)	180	180	180		180		260		260
Voltage	220V or 380V
Power (kw)	3.5	3.8	4.0		4.5		5.5		6.5
