Rain spray test chamber IPx34IPx3~4 Rain Spray Test Chamber is mainly used to simulate the lamps in the rain, to assess the ability of the lamp against water penetration through the impact of lamps by the rain. It Applies to the assessment of electrical products, housings and seals in the rain environment that can guarantee the good performance of equipment and components. The basic structure and principle of the equipment and performance conforms to the GB10485-89 "external lighting and signal trailers and trailers basic environmental testing"standard corresponding to the technical specifications and requirements, also meet the IP3, IP4 requirements.
Telephone:+86 13794880254
Mail:carleen@sailham.com
|

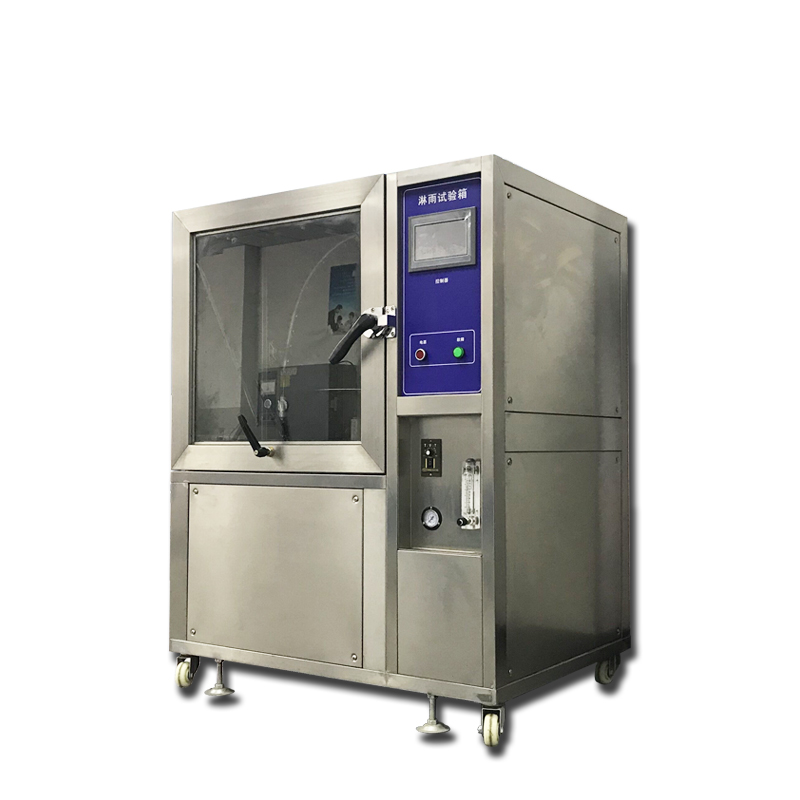

IPx3~4 Water proof test chamber
IPx3~4
Rain Spray Test Chamber is mainly used to simulate the lamps in the
rain, to assess the ability of the lamp against water penetration
through the impact of lamps by the rain. It Applies to the assessment of
electrical products, housings and seals in the rain environment that
can guarantee the good performance of equipment and components. The
basic structure and principle of the equipment and performance conforms
to the GB10485-89 "external lighting and signal trailers and trailers
basic environmental testing"standard corresponding to the technical
specifications and requirements, also meet the IP3, IP4 requirements.
The
chamber shell material is treated with steel plate paint, the inner
material is stainless steel light board. Large area of visual glass is
easy to observe the specimen status inside the chamber. The bottom of
the chamber with high quality fixed PU activity wheel, with
user-friendly move.
Water spray test equipment is designed
according to the standard of IEC60529, GB2423, GB7000.1,
GB4208-1993,(shell protection grade).
Features:
1. Touch screen controller
2. Oscillating tubes are stainless steel
3. Stainless steel nozzles is removable for cleaning or replacing
4. Nozzles can be turned on or off to adjust the arc of the spray from the tube
5. Water supply unit includes water filter, pump, flow meter, electromagnetic valve and switch valve.
6. Two available flow rates to meet major standards
7. Oscillating tube angle can be adjusted freely from 40 ° to almost 360 °
8. Stainless steel specimen support with easy adjustment for height and with two specimen bases
Specification parameter:
| Model No | ZH-IP34-600 | ZH-IP34-800 | ZH-IP34-1000 |
| Volume | 216L | 512L | 1000L |
| Internal dimension (mm) | W600 * H600 * D600 | W800 * H800 * D800 | W1000 * H1000 * D1000 |
| External dimension (mm) | W1200 * H1450 * D850 | W1400 * H1650 * D950 | W1600 * H1850 * D1150 |
| IP degree | IPX3, IPX4 or other IP1~8 | ||
| Sample shelf size | φ400mm | ||
| Test box rotating speed | 1 ~5rpm/min , adjustable | ||
| Spray orifice diameter | φ0.4mm | ||
| Water pipe diameter | φ16mm | ||
| Test box material | High quality 304 stainless steel mesh plate | ||
| Spray ring radius | 375 and 500mm | ||
| Swing pipe | ±45°,±60°,±90°,±180°(theory number) | ||
| Swing pipe swing | 1-300° (adjustable) stepper motor control | ||
| Swing pipe material | High quality 304 stainless steel seamless pipe | ||
| Meet the standard | IEC60529:1989+A1:1999,GB4208-2008,GB7000.1(IPX3,IPX4) | ||
