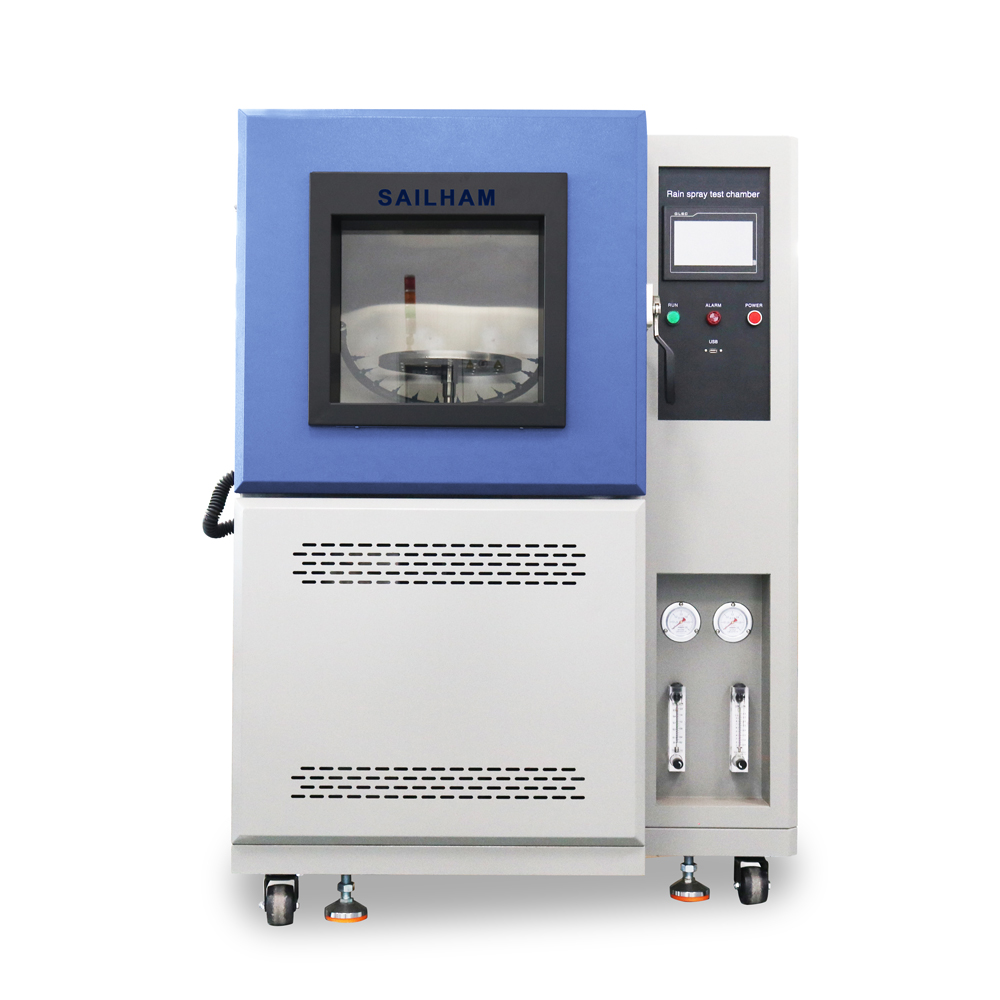

IPx9K High Temperature Pressure Rain Test Chamber

High Temperature Water Proof Test Chamber (IPx9K)

ZH-IPx9K-1000

IPX9K high-temperature and high-pressure waterproof test chamber is to use the water temperature of up to 80 °, plus the water pressure of 8000-10000Kpa, to carry out 4 fixed orientation spray test on the sample. 4 nozzles, each fixed at each angle, respectively 0°, 30°, 60 °, 90°, each angle requires a test time of 30s. It is recognized as the harshest of all ingress protection tests. However the requirement is becoming more prevalent across many industries. It is mainly suitable for testing the performance of shell and seal of electrical and electronic parts, automobile parts and seals etc..

Conforms to the standard.

• DIN40050-9 IP code of enclosure protection grade

• IEC60529 electrical enclosure protection classification level (IP) code

• ISO16750-1 Road vehicles Environmental conditions and tests for electrical and electronic equipment (general regulations)

• ISO20653 road vehicles-protection level (IP code)-protection of foreign objects, water and contact of electrical equipment

• QC / T 417.1 Vehicle wiring harness connector Part 1

Main technical parameters.
