Battery extrusion and needle punching tester

Battery extrusion and needle punching tester

ZH-EN-60C

1. Introduction.

1.1. The battery extrusion and puncture integrated machine is suitable for simulating the situation of various batteries being squeezed and punctured during use, transportation, storage, or treatment of household waste. The squeezing direction of the squeezing test should follow the following rules: a battery should only be squeezed once, and the battery should be qualified as not exploding or catching fire.

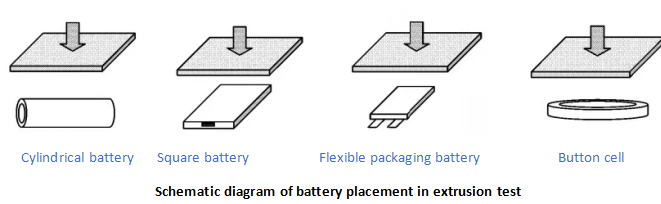

1.2. For cylindrical batteries, the longitudinal axis of the extruded battery should be parallel to the two flat plates of the extrusion device;

1.3. For square and flexible packaging batteries, only squeeze the wide side of the battery;

1.4. For coin or button type batteries, use a method of squeezing the upper and lower planes of the battery parallel

to the flat panel.

Test method:

² Squeeze test: After fully charging the battery according to the specified test method, place the battery in two planes and squeeze it perpendicular to the direction of the electrode plate. Apply a squeezing force of 13KN+0.78KN between the two plates. Once the pressure reaches its maximum value, the compression test can be stopped, and the battery cannot experience external short circuits during the test process.

Acceptance criteria: The battery should not explode or catch fire.

² Needle puncture test: The needle puncture test should be conducted in an environment of 20 ℃± 5 ℃, with the battery lying flat on the fixture and using a diameter of φ 3- φ An 8mm corrosion-free steel needle is inserted into the center of the battery surface at a speed of 10mm/s-40mm/s, held for any time, and the test results are observed. If the battery does not explode or catch fire, it is considered qualified. The battery extrusion testing machine complies with standards such as GB31241-2014.

2. Conforms to the standard.

GB 31241-2014 "Safety requirements for lithium-ion batteries and battery packs for portable electronic products"

MT/T 1051-2007 "Lithium ion batteries for mining lamps"

SJ/T 11169-1998 (UL1642:1995) "Safety Standard for Household and Commercial Batteries"

YD 1268-2003 "Safety requirements and test methods for lithium batteries and chargers for mobile communication handheld devices"

GB/T 19521.11-2005 "Safety Code for Inspection of Hazardous Characteristics of Lithium Battery Pack Dangerous Goods"

GB/T 18287-2013 "General Specification for Lithium Ion Batteries for Cellular Phones"

SJ/T 11170-1998 (UL2054:1997) "Safety Standard for Household and Commercial Batteries"

UN 38.3 "Recommendations for the Transport of Dangerous Goods - Manual of Tests and Standards", Part 3, Section 38.3

UL 1642 "Lithium Battery Standard" 2054 "Household and Commercial Battery Sets"

IEC62133-2012 "Storage batteries and battery packs containing alkaline or non acidic electrolytes - Safety requirements for sealed batteries and battery packs for portable equipment"

GB/T 8897.4-2008 (IEC 60086-4:2007) Primary battery Part 4 Safety Requirements for Lithium Batteries

YDB 032-2009 "Backup lithium-ion battery pack for communication"

YD/T 2344.1-2011 Lithium iron phosphate battery pack for communication Part 1: Integrated battery pack

GB/T 21966-2008 (IEC 62281:2004) Safety Requirements for Lithium Primary battery and Storage Battery in Transport
