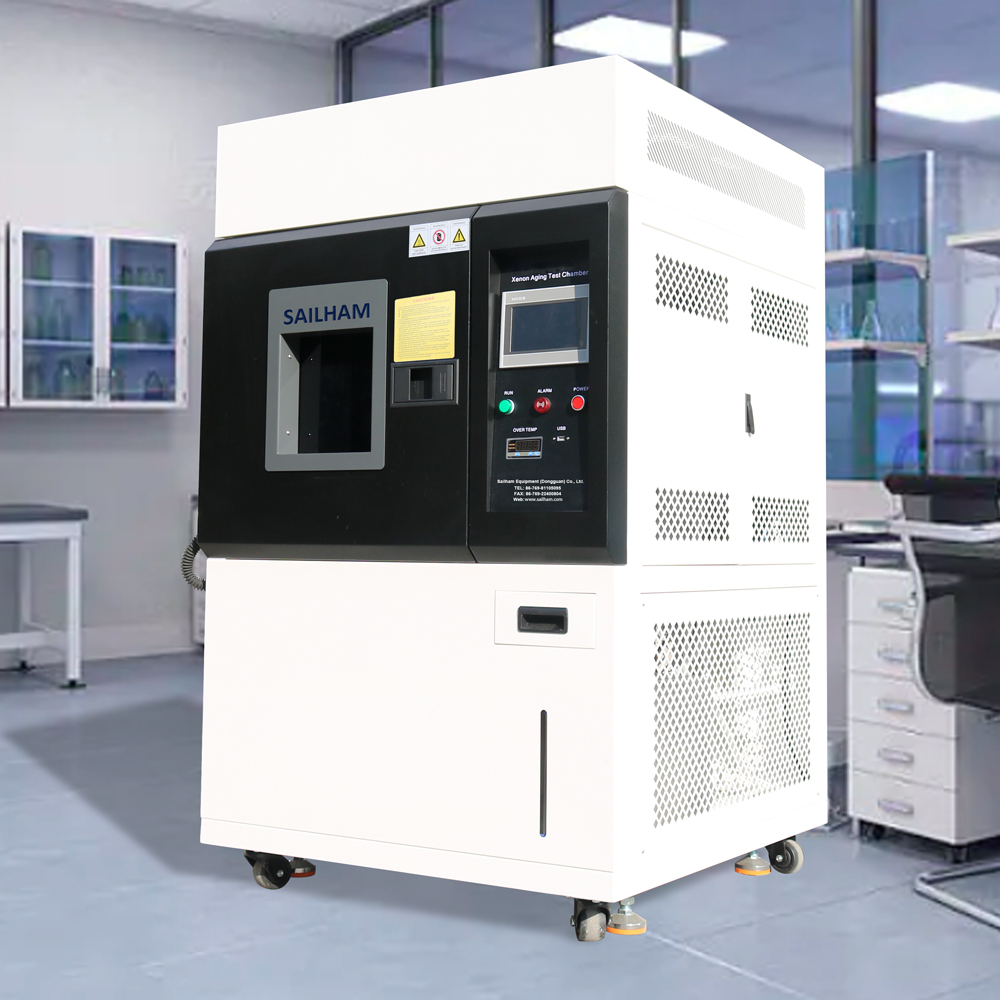

Xenon Weathering Tester (Flat array)

Model

Inner size(cm)

Volume

Quantity of xenon lamp/
Effective irradiation area

External size (cm) appr.

Power supply

Installation power

ZH-XLW-150

W50*H50*D60

(150L)

1; 945cm²

W102*H167*D112

AC380V±10%, 3ph, 50HZ

6.5KW, 10A

ZH-XLW-225

W75*H50*D60

(225L)

2; 1750cm²

W130*H170*D115

9.8KW, 16A

ZH-XLW-408

W85*H60*D80

(408L)

2; 2100cm²

W135*D180*H185

9.8KW, 15A

ZH-XLW-800

W100*H80*D100

(800L)

3; 2925cm²

W155*H205*D155

18.0KW, 27A

ZH-XLW-1000

W100*H100*D100

(1000L)

3; 2925cm²

W155*H225*D155

18.0KW, 27A

1.2. National patent

Patent No.: ZL201620138457.3 A xenon aging test chamber

Software copyright No: 2019SR0127073 Programmable xenon aging chamber controller system

1.3. Specimen Limited

● Do not test explosive substances, flammable substances, and materials containing the above substances as samples. Otherwise, there is a danger of explosion, fire and other accidents.

● Do not allow corrosive substances to enter the water tank or chamber, which may cause the corrosion resistance of the product to decrease significantly.

● Do not use living things and substances that will exceed the allowable calorific value as samples.

2. Size & Specification

2.1. Interior sample holder

 (Flat sample holder with adjustable height and can place special-shaped samples)

2.2. Sample situation

The sample placement test space is no more than three-quarters of the total space, and there is no heat load.

3. Performance

3.1. Temperature range

0℃～80℃

3.2. Blackboard temperature range (BPT)

+45℃～+100℃(±3℃); Set it according to the temperature and irradiance in the chamber

3.3. Temperature deviation

±2℃  (without lighting)

3.4. Temperature resolution

0.1℃

3.5. Temperature fluctuation

±0.5℃  (without lighting)

3.6. Humidity range

20％～95％R.H (Purple area is controllable)

3.7. Humidity deviation

±3%R.H (without lighting)

3.8. Humidity fluctuation

±2.5%R.H (without lighting)

3.9. Light source

- Full spectrum air-cooled Xenon lamp (average service life 1500 hrs)

- Power of lamp: 1.8 KW;

- One set of irradiance sensor

3.10. Irradiance monitor method

Narrow band 340nm or 420nm, or Broad band 280~800nm or 300~400nm (choose anyone band before ordering)

3.11. Adjustable light irradiance range

0.35W/m² ~ 0.70W/m² adjustable (control at 340nm);

0.35W/m^{2 ~} 1.25W/m² adjustable (control at 420nm);

180W/m²~1200W/m² adjustable (control at 280nm ~ 800nm);

30 W/m² ~ 60 W/m² adjustable (control at 300nm ~ 400nm).

Choose anyone band before ordering. (One more kinds of band in one machine can be customized)

3.12. Spray function

It can be sprayed indirectly and continuously.

3.13. Function mode

Irradiation mode, dark mode and spray mode can be cycled alternately.

※ The above performance is measured under the conditions of ambient temperature 25℃±3℃, relative humidity ≤85%, no-load and no sample.
